Galvanizli Karbon Çelik Dikişli Boru Yuvarlak Kare Dikdörtgen Elips Petrol Doğal Gaz Endüstrisi
Product Details
| Malzeme: | Astm A335 P5 P9 Alaşımlı Karbon Çelik Dikişli Borular | Bitiricilik: | Tavlanmış, Normalize, Normalize ve Temperli |
|---|---|---|---|
| Uygulama: | kazan ve eşanjör, enerji, petrokimya, madencilik, gıda, kağıt, gaz ve sıvı endüstrisi | Sertifikalar: | ASME, TÜV, SGS, CE, ISO9001, |
| şekil: | kaynaklı boru | ||
| Vurgulamak |
cs erw boru,soğuk çekilmiş çelik boru |
||
Product Description

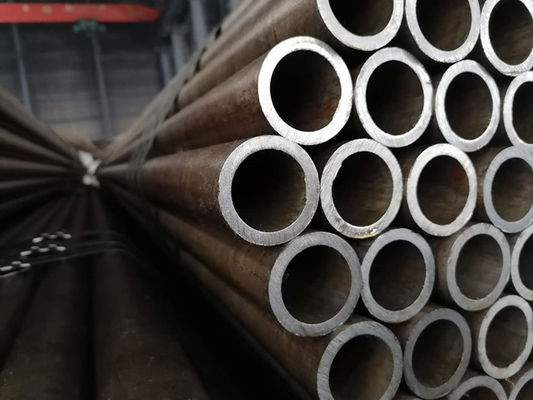

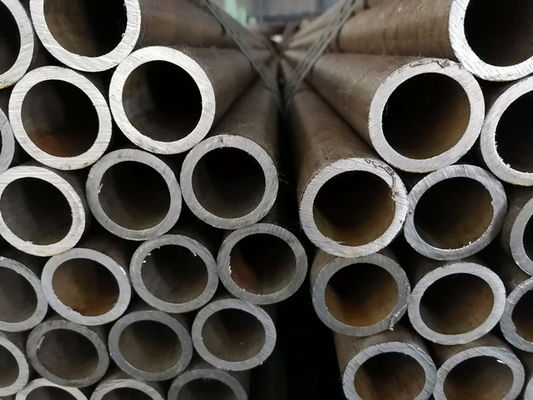

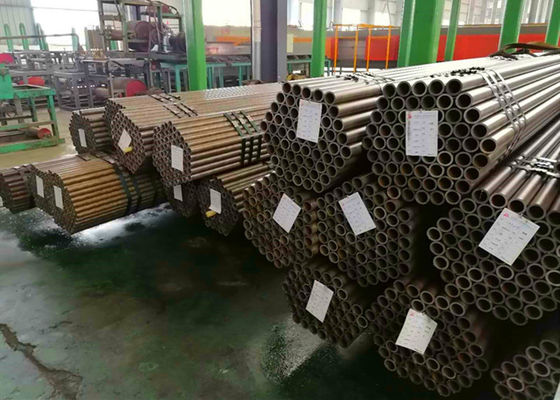

Galvanizli Yuvarlak / Kare / Dikdörtgen / Elips Petrol, doğal gaz Kaynaklı Çelik Borular / Boru
Galvanizli Yuvarlak / Kare / Dikdörtgen / Elips Petrol, doğal gaz Kaynaklı Çelik Borular / Boru
ASTM A53, BS1387, DIN2244, GB/T13793, GB/T3091, GB/T 6728, GB/T6725'e göre
Yüzey işleme: paslanmayı önlemek için galvanizli veya yağ veya siyah renkle kaplanmış
Uzunluk 5.8M /6M veya müşterinin isteğine göre.Minimum sipariş: boyut başına 50MT
| Emtia | Boyut | Boyut toleransı (mm) | Kalınlık (mm) | Uzunluk Toleransı |
| Daire Boru | Φ13~Φ25.4 | 0.10 | 0,5~1,5 | +50mm |
| Φ18~Φ25.4 | 0.10 | 1.5~2.0 | +50mm | |
| Φ25.4~Φ34 | 0.10 | 0.7~2.0 | +50mm | |
| Φ25.4~Φ34 | 0.12 | 0,8~3,0 | +50mm | |
| Φ50.8~Φ79.2 | 0.12 | 1.0~3.0 | +50mm | |
| Kare boru | 16×16~25,4x25,4 | 0.15 | 0.7~2.0 | +50mm |
| 30×30~50×50 | 0.20 | 1.0~3.0 | +50mm | |
| 60×60 | 0.15 | 0.7~2.0 | +50mm | |
| 100×100--200×200 | 0.60 | 3.0~6.0 | +50mm | |
| Dikdörtgen Boru | 10×20~20×40 | 0.20 | 0,8~1,5 | +50mm |
| 20×40~30×50 | 0.25 | 1.0~2.5 | +50mm | |
| 25×70~38.1.76.2 | 0.25 | 1.2~2.5 | +50mm | |
| 30×60~40x80 | 0.30 | 1.2~2.5 | +50mm | |
| 120×60~150×250 | 0.60 | 3.0~6.0 | +50mm | |
| Elips Boru | Φ10~Φ20 | 0.20 | 0,8~1,5 | +50mm |
sertifika
Zhangjiagang Hua Dong Energy Technology Co., Ltd., kazan ve ısı eşanjörü, enerji, petrokimya, madencilik alanında yaygın olarak kullanılan her türlü paslanmaz, karbon ve alaşımlı çelik boru ve boru, çelik levha üretiminde uzmanlaşmış yüksek teknoloji ürünü bir kuruluştur. , gıda, kağıt, gaz ve sıvı endüstrisi.Ve ASME, TUV, Grade A, ISO9001, EN12952, EN10216, SO3834 dahil olmak üzere onayları geçtik.
Product Highlights
Galvanizli Yuvarlak / Kare / Dikdörtgen / Elips Petrol, doğal gaz Kaynaklı Çelik Borular / Boru Galvanizli Yuvarlak / Kare / Dikdörtgen / Elips Petrol, doğal gaz Kaynaklı Çelik Borular / Boru ASTM A53, BS1387, DIN2244, GB/T13793, GB/T3091, GB/T 6728, GB/T6725'e göre Yüzey işleme: paslanmayı önlemek ...
