Eşanjör Ss Paslanmaz Çelik Dikişli Boru ASTM A270 A249
Product Details
| Malzeme: | TP304 TP304L TP316 TP316L, 300 Serisi | Bitiricilik: | Çözüm Tavlanmış ve Turşu |
|---|---|---|---|
| Uygulama: | kazan ve eşanjör, enerji, petrokimya, madencilik, gıda, kağıt, gaz ve sıvı endüstrisi | şekil: | Kaynaklı boru |
| OD: | 5.80mm ila 2032mm | WT: | 0,25 mm ila 28 mm |
| Vurgulamak |
paslanmaz çelik dikişli boru,dubleks paslanmaz çelik boru |
||
Product Description
Eşanjör Paslanmaz Çelik Kaynaklı Boru, ASTM A270 / A249
Hua Dong Enerji Teknolojisi, zaten 10 yıldan fazla paslanmaz çelik kaynaklı boru ve boru ile ilgileniyor, her
year sell more than 5000 tons of stainless steel pipe and tube. yıl fazla 5000 ton paslanmaz çelik boru ve tüp satmak. Our client already cover more than 45 Müşterimiz zaten 45'ten fazla
countries. ülkeler. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Paslanmaz çelik dikişsiz boru ve tüpümüz, Madencilik, Enerji, Petrokimya,
Kimya Sanayi, gıda bitki, kağıt bitki, gaz ve Sıvı Sanayi vb.
| Malzeme sınıfı | TP304, TP304L, TP304H, TP316, TP316L, TP316Ti, TP309S, TP310S, TP321, TP321H, TP347, TP347H, vb. |
| Dış çap | 5.80mm-2032mm (0.23 "ila 80") |
| Duvar kalınlığı | 0.25mm-28mm (0.01 "ila 1.125") |
| uzunluk | Normalde sabit uzunluk 6 m, müşteri şartının gibi olabilir |
| Standart | ASTM A312; ASTM A312; ASTM A269; ASTM A269; ASTM A789; ASTM A789; ASTM A790 ect. ASTM A790 vb. |
| İşlem Yöntemi | ERW, EFW vb. |
ASTM A249 Standardı:
| OD boyutu | Nominal Duvar | Dış çap | uzunluk | Duvar |
| 1/2 "(12.7) | 0,065 "(1,65) /0,049" (1,25) | +/- 0.005 (0.13) | +1/8 "(3,18) - 0 | +/-% 10.0 |
| 3/4 "(19,1) | 0,065 "(1,65) /0,049" (1,25) | +/- 0.005 (0.13) | +1/8 "(3,18) - 0 | +/-% 10.0 |
| 1 "(25,4) | 0,065 "(1,65) /0,049" (1,25) | +/- 0.005 (0.13) | +1/8 "(3,18) - 0 | +/-% 10.0 |
| 1-1 / 2 "(38,1) | 0,065 "(1,65) /0,049" (1,25) | +/- 0.008 "(0.20) | +1/8 "(3,18) - 0 | +/-% 10.0 |
| 2 "(50,8) | 0,065 "(1,65) /0,049" (1,25) | +/- 0.008 "(0.20) | +1/8 "(3,18) - 0 | +/-% 10.0 |
| 2-1 / 2 "(63,5) | 0,065 "(1,65) | +/- 0,010 "(0,25) | +1/8 "(3,18) - 0 | +/-% 10.0 |
| 3 "(76,2) | 0,065 "(1,65) | +/- 0,010 "(0,25) | +1/8 "(3,18) - 0 | +/-% 10.0 |
| 4 "(101,6) | 0,083 "(2,11) | +/- 0,015 "(0,38) | +1/8 "(3,18) - 0 | +/-% 10.0 |
| 6 "(152,4) | 0,083 "(2,11) | +/- 0,030 "(0,76) | +1 "(25,4) - 0 | +/-% 10.0 |
| 6 "(152,4) | 0.109 "(2.77) | +/- 0,030 "(0,76) | +1 "(25,4) - 0 | +/-% 10.0 |
| 8 "(203,2) | 0.109 "(2.77) | +0.061 "(1,55) / - 0,031" (0,79) | +1 "(25,4) - 0 | +/-% 10.0 |
Uygulama :
a) Sıvı ve gaz nakli için
b) Yapı ve işleme

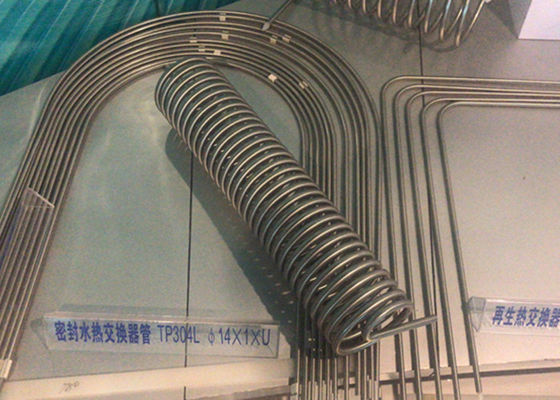

c) Eşanjör boruları vb.
| Stanard Tel Ölçer (Fomerly İmparatorluk Tel Ölçer) SWG | |||||
| swg | Duvar kalınlığı | swg | Duvar kalınlığı | ||
| 0 | 0.324 | 8.23 | 21 | 0.032 | 0.81 |
| 1 | 0.3 | 7.62 | 22 | 0.028 | 0,71 |
| 2 | 0.276 | 7.01 | 23 | 0.024 | 0.61 |
| 3 | 0.252 | 6.4 | 24 | 0.022 | 0,56 |
| 4 | 0.232 | 5.89 | 25 | 0.02 | 0,51 |
| 5 | 0.212 | 5.38 | 26 | 0.018 | 0.46 |
| 6 | 0.192 | 4.88 | 27 | 0.0164 | 0.42 |
| 7 | 0.176 | 4.47 | 28 | 0,0148 | 0,38 |
| 8 | 0.16 | 4.06 | 29 | 0.0136 | 0.35 |
| 9 | 0.144 | 3.66 | 30 | 0.0124 | 0.31 |
| 10 | 0.128 | 3.25 | 31 | 0.0116 | 0.29 |
| 11 | 0.116 | 2.95 | 32 | 0,0108 | 0.27 |
| 12 | 0.104 | 2.64 | 33 | 0.01 | 0.25 |
| 13 | 0.092 | 2.34 | 34 | 0,0092 | 0.23 |
| 14 | 0.08 | 2.03 | 35 | 0.0084 | 0.21 |
| 15 | 0.072 | 1.83 | 36 | 0,0076 | 0.19 |
| 16 | 0.064 | 1.63 | 37 | 0.0068 | 0.17 |
| 17 | 0.056 | 1.42 | 38 | 0.006 | 0.15 |
| 18 | 0.048 | 1.22 | 39 | 0,0052 | 0.13 |
| 19 | 0.04 | 1.02 | 40 | 0,0048 | 0.12 |
| 20 | 0.036 | 0.91 | |
||
