Karbon Çelik Boru Dirsek ASTM A234 WPB-S LR SR DN300 SCH120 BW SMLS B16.9 Siyah Yüzey
Product Details
| Malzeme: | DN300 / 200 SCH120 B16.9 | Uygulama: | kazan, enerji, petrokimya, madencilik, gıda, kağıt, gaz ve sıvı endüstrisi |
|---|---|---|---|
| boyut: | <i>OD: 1/2" NB - 48" NB.</i> <b>OD: 1/2 "NB - 48" NB.</b> <i>WT: SCH 10S - SCH X | Standart: | ANSI B16.9, MSS SP 43 |

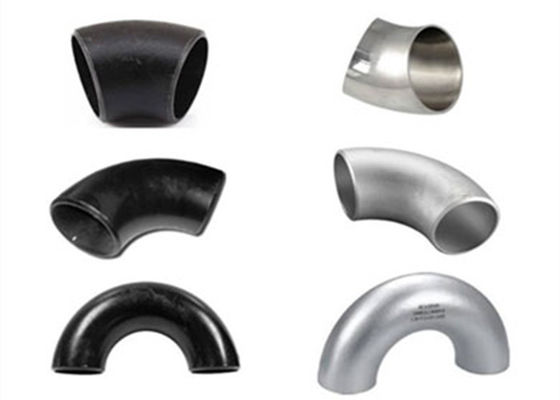

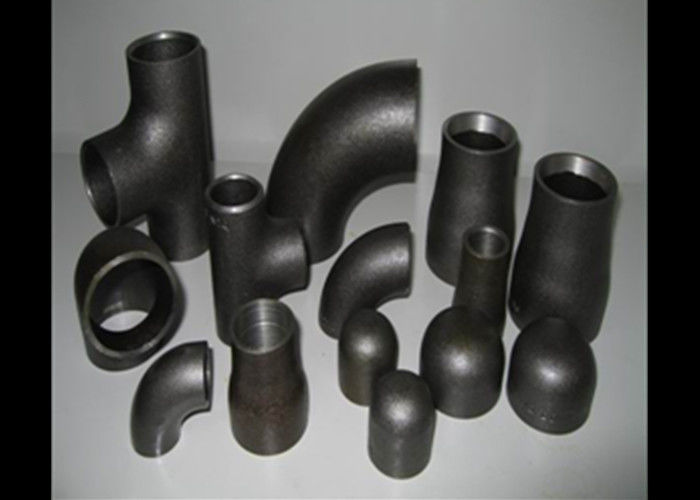

| tip: | Dikişsiz / ERW / Kaynaklı / Fabrikasyon / Dövme | Form: | 45 Derece, 90 Deg, 180 Deg, Eşit, Eşitsiz Tee ve Çubuklu Tee'de Uzun ve Kısa Yarıçaplı Dirsekler |
| Vurgulamak |
dubleks çelik dirsek,alın kaynak dirseği |
||
Product Description

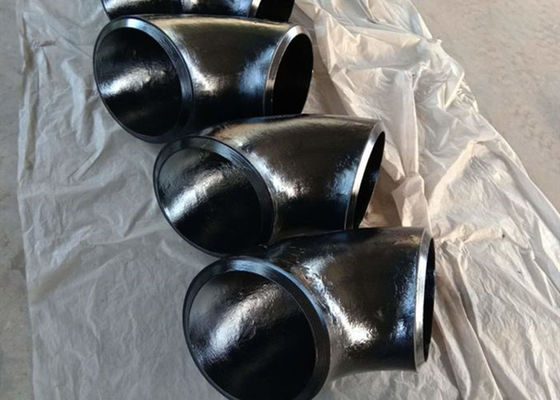

Karbon Çelik Bağlantı, ASTM A234 WPB-S, 90DEG DİRSEK LR SR, DN300 SCH120 BW SMLS B16.9, Siyah Yüzey
Karbon Çelik Boru Ek Parçaları - Uzun Radius Dirsek 90
Standart
| Nominal Boru Boyutu |
Dışarıda Çap |
içeride Çap |
Duvar Kalınlık |
merkez Bitiş |
Boru program |
Ağırlık pound |
| 1/2 | 0.84 | 0.622 | 0.109 | 1.5 | 40 | 0.16 |
| 3/4 | 1.05 | 0,824 | 0.113 | 1.5 | 40 | 0.17 |
| 1 | 1.32 | 1,049 | 0.133 | 1.5 | 40 | 0.4 |
| 1 1/4 | 1,66 | 1,38 | 0.14 | 1.88 | 40 | 0,55 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 2.25 | 40 | 0.8 |
| 2 | 2.38 | 2.07 | 0.154 | 3 | 40 | 1.6 |
| 2 1/2 | 2.88 | 2.47 | 0.203 | 3.75 | 40 | 3.2 |
| 3 | 3.5 | 3.07 | 0.216 | 4.5 | 40 | 4.8 |
| 3 1/2 | 4 | 3.55 | 0.226 | 5.25 | 40 | 6.6 |
| 4 | 4.5 | 4.03 | 0.237 | 6 | 40 | 8.9 |
| 5 | 5.56 | 5.05 | 0.258 | 7.5 | 40 | 15.1 |
| 6 | 6.62 | 6.07 | 0.28 | 9 | 40 | 24 |
| 8 | 8.62 | 7.98 | 0.322 | 12 | 40 | 47,8 |
| 10 | 10.75 | 10.02 | 0.365 | 15 | 40 | 83.4 |
| 12 | 12.75 | 12 | 0.375 | 18 | * | 123 |
| 14 | 14 | 13.25 | 0.375 | 21 | 30 | 155 |
| 16 | 16 | 15,25 | 0.375 | 24 | 30 | 206 |
| 18 | 18 | 17.25 | 0.375 | 27 | * | 262 |
| 20 | 20 | 19.25 | 0.375 | 30 | 20 | 324 |
| 24 | 24 | 23,25 | 0.375 | 36 | 20 | 466 |
| 30 | 30 | 29.25 | 0.375 | 45 | * | 720 |
| 36 | 36 | 35.25 | 0.375 | 54 | * | 1039 |
| 42 | 42 | 41.25 | 0.375 | 63 | * | 1,420 |
| 48 | 48 | 47.25 | 0.375 | 72 | * | 2.000 |
Ekstra güçlü
| Nominal Boru Boyutu |
Dışarıda Çap |
içeride Çap |
Duvar Kalınlık |
merkez Bitiş |
Boru program |
Ağırlık pound |
| 1/2 | 0.84 | 0.546 | 0.147 | 1.5 | 80 | 0.26 |
| 3/4 | 1.05 | 0.742 | 0.154 | 1.5 | 80 | 0.29 |
| 1 | 1.32 | 0,957 | 0.179 | 1.5 | 80 | 0,48 |
| 1 1/4 | 1,66 | 1.27 | 0.191 | 1.88 | 80 | 0,79 |
| 1 1/2 | 1.9 | 1.5 | 0.2 | 2.25 | 80 | 1.2 |
| 2 | 2.37 | 1.93 | 0.218 | 3 | 80 | 2.1 |
| 2 1/2 | 2.88 | 2.32 | 0.276 | 3.75 | 80 | 3.8 |
| 3 | 3.5 | 2.9 | 0.3 | 4.5 | 80 | 6.3 |
| 3 1/2 | 4 | 3,36 | 0.318 | 5.25 | 80 | 8.6 |
| 4 | 4.5 | 3,82 | 0.337 | 6 | 80 | 12.5 |
| 5 | 5.56 | 4.81 | 0.375 | 7.5 | 80 | 21.2 |
| 6 | 6.63 | 5.76 | 0,432 | 9 | 80 | 34,4 |
| 8 | 8.63 | 7.63 | 0.5 | 12 | 80 | 71.3 |
| 10 | 10.75 | 9.75 | 0.5 | 15 | 60 | 111 |
| 12 | 12.75 | 11.75 | 0.5 | 18 | * | 158 |
| 14 | 14 | 13 | 0.5 | 21 | * | 201 |
| 16 | 16 | 15 | 0.5 | 24 | 40 | 270 |
| 18 | 18 | 17 | 0.5 | 27 | * | 348 |
| 20 | 20 | 19 | 0.5 | 30 | 30 | 422 |
| 24 | 24 | 23 | 0.5 | 36 | * | 604 |
| 30 | 30 | 29 | 0.5 | 45 | 20 | 997 |
| 36 | 36 | 35 | 0.5 | 54 | 20 | 1,380 |
| 42 | 42 | 41 | 0.5 | 63 | * | 1880 |
| 48 | 48 | 47 | 0.5 | 72 | * | 2502 |
Ürün yelpazesi :
Boyut: 1/8 "NB - 48" NB IN
Program: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Türü: Dikişsiz / ERW / Kaynaklı / Fabrikasyon / Dövme
Form: Eksantrik Redüksiyon, Konsantrik Redüksiyon
Malzemeler
Paslanmaz Çelik Redüktör - SS Redüktör
ASTM A403 WP Gr. ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Karbon Çelik Redüktör - CS Redüktör
ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 ve WPHY 70.
Düşük Sıcaklık Karbon Çelik Redüktör - LTCS Redüktör
ASTM A420 WPL3 / A420WPL6
Alaşımlı Çelik Redüktör - AS Redüktör
ASTM / ASME A/SA 234 Gr. ASTM / ASME A / SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Dubleks Çelik Redüktör
ASTM A 815 UNS NO S 31803, S 32205.
Nikel Alaşımlı Redüktör
Standart
- ASTM / ASME SB 336.
- UNS 10276 (HASTELLOY C 276 Redüktör)
- UNS 2200 (NICKEL 200 Redüktör),
- UNS 2201 (NICKEL 201 Redüktör),
- UNS 4400 (MONEL 400 Redüktör),
- UNS 8020 (ALAŞIM 20 Redüktör),
- UNS 8825 (INCONEL 825 Redüktör),
- UNS 6600 (INCONEL 600 Redüktör),
- UNS 6601 (INCONEL 601 Redüktör),
- UNS 6625 (INCONEL 625 Redüktör),
Katma Değerli Hizmetler
- Sıcak Daldırma Galvanizleme
- Epoksi Kaplama
