Erw Kaynaklı Dirsek Çelik Kazan Boruları Sch Std Sch80 Dikişsiz Tip Azaltın
Product Details
| Malzeme: | WPB, WPC, WPHY 42, WPHY 46, WPHY52, WPHY 56, WPHY 60, WPHY 65, WPHY 70, WPHY 80 | Uygulama: | kazan, enerji, petrokimya, madencilik, gıda, kağıt, gaz ve sıvı endüstrisi |
|---|---|---|---|
| OD: | 1/4 "100'e" Sch10s - XXS | Yüzey: | Siyah veya diğer renk kaplı |
| Vurgulamak |
dubleks çelik dirsek,karbon çelik boru dirseği |
||
Product Description

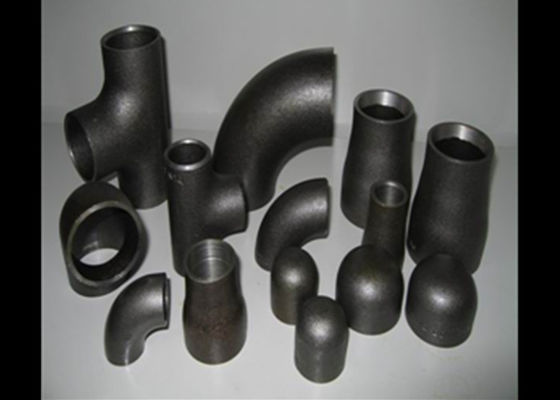

SCH STD SCH80 Çelik Bağlantı Parçaları DİRSEK AZALTMA Dikişsiz/ERW/Kaynaklı
Ürün bilgileri:
Boyut : 1/8" NB'DEN 100" NB'ye
Program : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Tip : Dikişsiz / ERW / Kaynaklı / Fabrikasyon / Dövme
Form : Eksantrik Redüktör, Konsantrik Redüktör
Malzemeler
Paslanmaz Çelik Redüktör - SS Redüktör
ASTM A403 WP Gr.304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Karbon Çelik Redüktör - CS Redüktör
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 ve WPHY 70.
Düşük Sıcaklık Karbon Çelik Redüktör - LTCS Redüktör
ASTM A420 WPL3 / A420WPL6
Alaşımlı Çelik Redüktör - AS Redüktör
ASTM / ASME A/SA 234 Gr.WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Dubleks Çelik Redüktör
ASTM A 815 UNS NO S 31803, S 32205.
Nikel Alaşımlı Redüktör
Standart
- ASTM / ASME SB 336.
- UNS 10276 (HASTELLOY C 276 Redüktör)
- UNS 2200 (NİKEL 200 Redüktör),
- UNS 2201 (NİKEL 201 Redüktör),
- UNS 4400 (MONEL 400 Redüktör),
- UNS 8020 (ALLOY 20 Redüktör),
- UNS 8825 (INCONEL 825 Redüktör),
- UNS 6600 (INCONEL 600 Redüktör),
- UNS 6601 (INCONEL 601 Redüktör),
- UNS 6625 (INCONEL 625 Redüktör),
Katma Değerli Hizmetler
- Sıcak Daldırma Galvaniz
- Epoksi Kaplama
Test sertifikası
EN 10204 / 3.1B'ye göre Değirmen Test Sertifikası

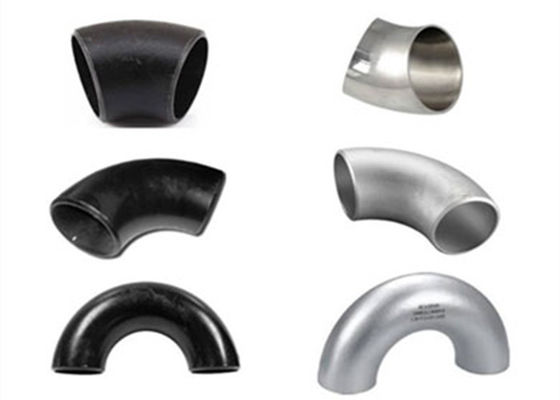

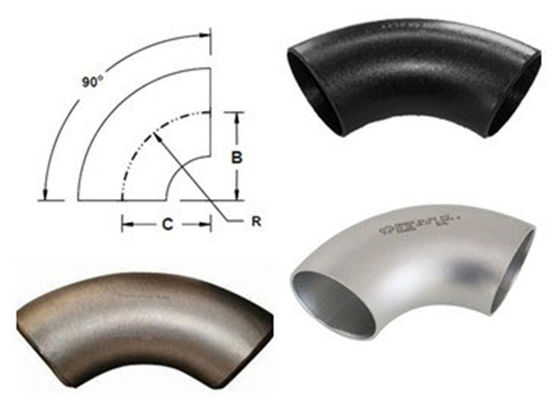

Karbon Çelik Boru Bağlantı Elemanı - Dirseklerin Azaltılması
ASME/ANSI B16.9
Standart
| Nominal Boru Boyutu | Merkezden Sona | Paunt cinsinden ağırlık |
| 2 X 1 | 3 | 1.2 |
| 2 X 1 1/4 | 3 | 1.3 |
| 2 X 1 1/2 | 3 | 1.4 |
| 2 1/2 X 1 1/4 | 3.75 | 2.5 |
| 2 1/2 X 1 1/2 | 3.75 | 2.6 |
| 2 1/2 X 2 | 3.75 | 2.8 |
| 3 X 1 1/2 | 4.5 | 3.3 |
| 3 X 2 | 4.5 | 3.6 |
| 3 X 2 1/2 | 4.5 | 4.2 |
| 3 1/2 X 2 | 5.25 | 4.5 |
| 3 1/2 X 2 1/2 | 5.25 | 5.5 |
| 3 1/2 X 3 | 5.25 | 6 |
| 4X2 | 6 | 6 |
| 4X2 1/2 | 6 | 6.8 |
| 4X3 | 6 | 7.7 |
| 4X3 1/2 | 6 | 8.4 |
| 5 X 2 1/2 | 7.5 | 10.7 |
| 5 X 3 | 7.5 | 11.8 |
| 5 X 3 1/2 | 7.5 | 12.6 |
| 5X4 | 7.5 | 13.4 |
| 6X3 | 9 | 16.8 |
| 6X3 1/2 | 9 | 17.8 |
| 6X4 | 9 | 18.9 |
| 6X5 | 9 | 21 |
| 8X4 | 12 | 33.1 |
| 8X5 | 12 | 36.2 |
| 8X6 | 12 | 39.7 |
| 10 X 5 | 15 | 58,5 |
| 10 X 6 | 15 | 63.2 |
| 10 X 8 | 15 | 73 |
| 12 X 6 | 18 | 86.5 |
| 12X8 | 18 | 98.4 |
| 12 X 10 | 18 | 113 |
Standart
| Nominal Boru Boyutu | Merkezden Sona | Paunt cinsinden ağırlık |
| 2 X 1 | 3 | 1.7 |
| 2 X 1 1/4 | 3 | 1.8 |
| 2 X 1 1/2 | 3 | 1.9 |
| 2 1/2 X 1 1/4 | 3.75 | 2.9 |
| 2 1/2 X 1 1/2 | 3.75 | 3 |
| 2 1/2 X 2 | 3.75 | 3.4 |
| 3 X 1 1/2 | 4.5 | 4.5 |
| 3 X 2 | 4.5 | 4.9 |
| 3 X 2 1/2 | 4.5 | 5.7 |
| 3 1/2 X 2 | 5.25 | 6.4 |
| 3 1/2 X 2 1/2 | 5.25 | 7.3 |
| 3 1/2 X 3 | 5.25 | 8.2 |
| 4X2 | 6 | 8.4 |
| 4X2 1/2 | 6 | 9.4 |
| 4X3 | 6 | 10.5 |
| 4X3 1/2 | 6 | 11.4 |
| 5 X 2 1/2 | 7.5 | 15.1 |
| 5 X 3 | 7.5 | 16.5 |
| 5 X 3 1/2 | 7.5 | 17.4 |
| 5X4 | 7.5 | 18.8 |
| 6X3 | 9 | 24,9 |
| 6X3 1/2 | 9 | 26.3 |
| 6X4 | 9 | 27.9 |
| 6X5 | 9 | 31.4 |
| 8X4 | 12 | 49.5 |
| 8X5 | 12 | 54.3 |
| 8X6 | 12 | 60.8 |
| 10 X 5 | 15 | 78,5 |
| 10 X 6 | 15 | 86.5 |
| 10 X 8 | 15 | 102 |
| 12 X 6 | 18 | 114 |
| 12X8 | 18 | 132 |
| 12 X 10 | 18 | 148 |
sertifika
