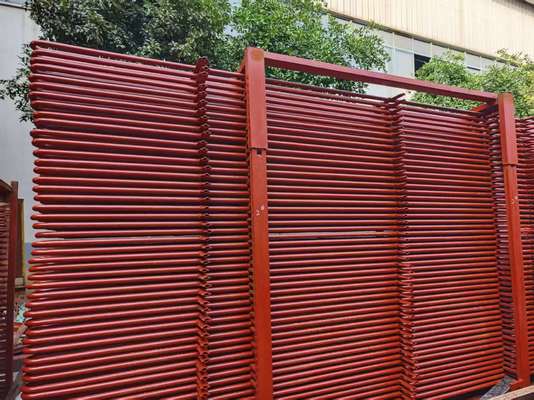

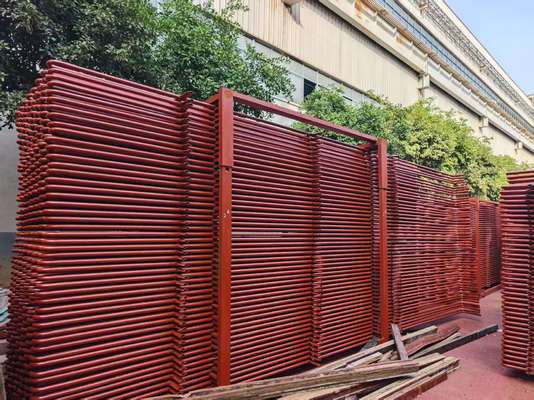

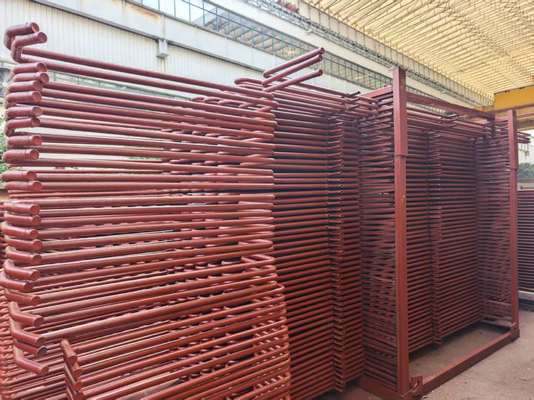

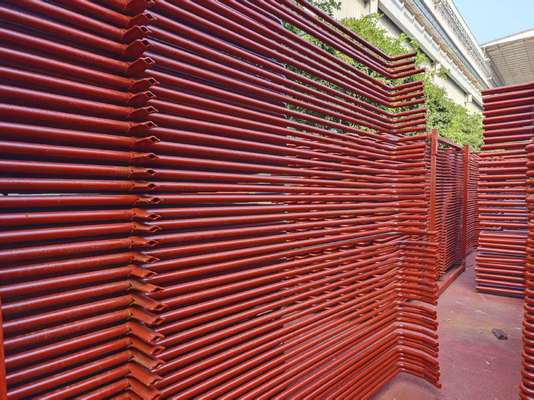

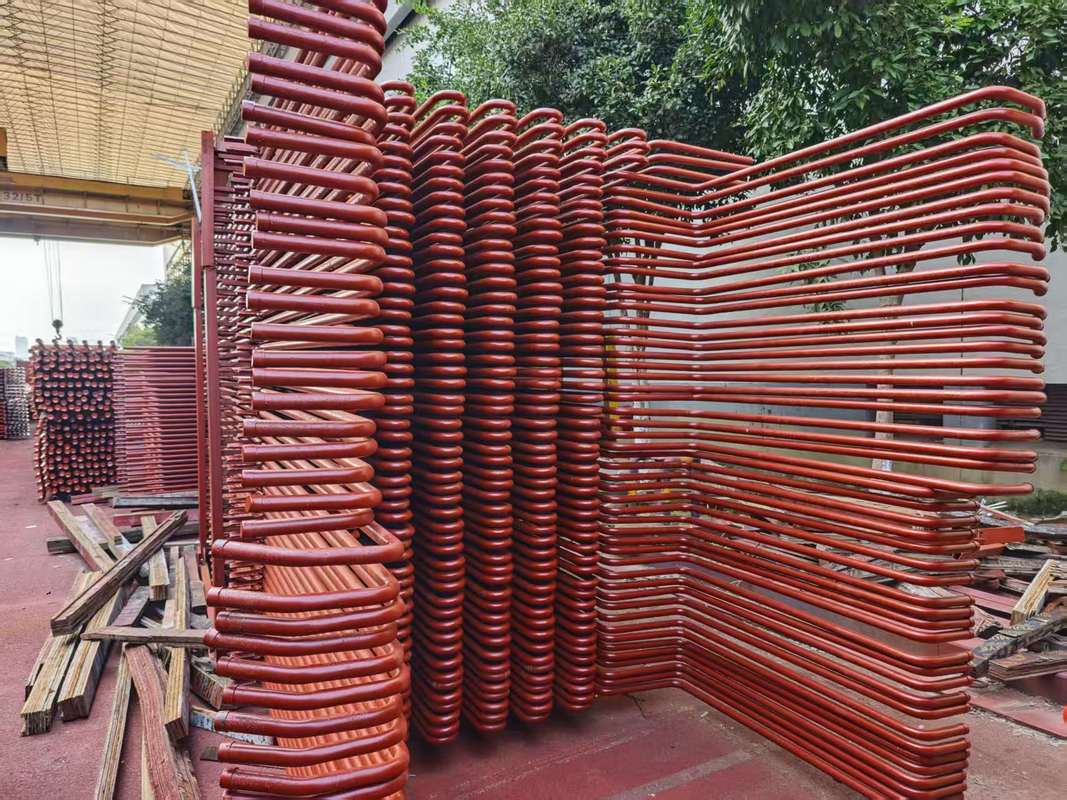

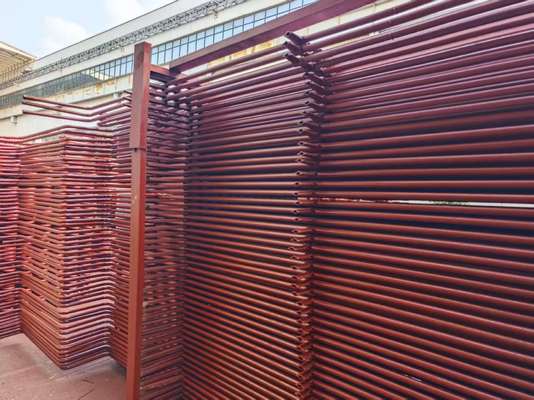

Customized High Temperature Grade A Carbon Steel Serpentine EBoiler Tubes
Product Description
The serpentine tube is a common tubular heat exchanger in which the heat transfer surface is acted by a serpentine tube bent into a cylindrical or flat shape. The serpentine tube heat exchangers play an important role in many industrial processes due to their simple design and efficient heat exchange. In addition, the serpentine tube heat exchanger's compact structure and small footprint make it a significant advantage in applications where space is limited.
Features
- Product Name: Superheater And Reheater
- Service Life: Long Service Life
- Design: Customized
- Maintenance: Low Maintenance
- Pressure: High Pressure
- Safety: High Safety
- Key Features:
- Designed for CFB Boiler
- Superheater Coils for high temperature and pressure operation
- Reheater Coils for additional heating of steam
Details
All the raw materials will be firstly made pipeline cutting.
It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.
| Setting Information |
| process | welding |
| structure | horizontal or vertical |
| material | carbon steel, alloy steel |
| tubes | φ32, 38, 42, etc. |
| size | customized |
| brand | HTEG |
| Warranty | 18 months |
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam
2. Needs slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type | 1. Proper drainage
2. Good structural rigidity. | 1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Applications
Superheaters and reheaters are built for high-pressure uses, and we can tweak them to meet your specific needs too. Their main job? To crank up the temperature of the steam that boilers produce – and that helps make heat exchange in turbines way more efficient.
As for the superheater coils, we make them from stainless steel, carbon steel, or alloy steel. Why these materials? They’re tough enough to last a long time, plus they hold up well against wear and tear. That makes them perfect for tough, harsh working environments.
These superheaters and reheaters work great for power plants that run on coal, biomass, or gas. And since they have a long service life, you won’t have to spend as much time or money on maintenance. They’re especially handy for power plants that need a high-pressure steam system, too – they give a reliable, efficient way to boost steam temperature, which ends up making the whole power system more efficient overall.
The Superheater and Reheater are used in a variety of occasions and scenarios. They are ideal for power plants that require a high-pressure steam system and are suitable for use with coal, biomass, or gas. These products are also customizable, which makes them suitable for a wide range of applications. The Superheater Coils are made from abrasion-resistant materials, which makes them ideal for use in harsh environments. They are also designed to improve the efficiency of heat exchange in turbines, which makes them an essential component in power generation systems.
Packing and Shipping
Product Packaging:
The Superheater And Reheater product will be carefully packaged to ensure safety during transportation. It will be wrapped in protective material and placed in a sturdy cardboard box with ample padding to prevent any damage during shipping.
Shipping:
The Superheater And Reheater product will be shipped via a reputable courier service to ensure timely and safe delivery. Delivery times may vary depending on the destination, but typically range from 3-7 business days. Customers will receive a tracking number once the product has been shipped so they can monitor its progress and estimated delivery date.
Company Introduction
Hua Dong Energy Technology Started to Produce Serpentine Tube Since 1985,Up to now already supply more than 300,000 tons Steel Serpentine Tube to over 30 countries.
Hua Dong Energy Technology deals with Austenitic Stainless Steel, Nickel Alloy Steel (Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 35 years, every year sell more than 50000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Russia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001, ISO 14001.
